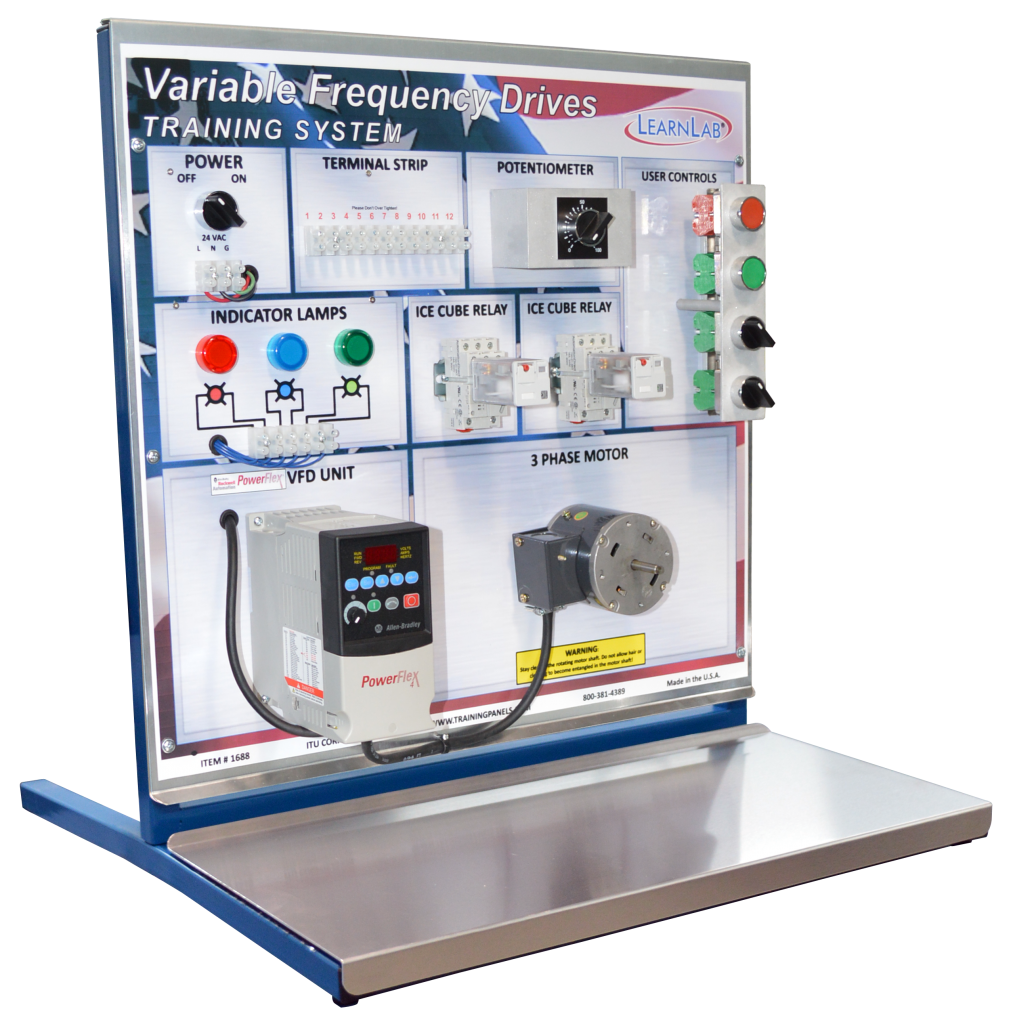

Allen Bradley PowerFlex4 VFD Training System

LearnLab’s Allen-Bradley VFD Training System is designed for working on real electrical circuits that include a Variable Frequency Drive to control a three phase motor. Also known as adjustable-frequency drives (AFD), variable-speed drives (VSD), AC drives, microdrives or inverter drives. VFD technology is often used to control the rotational speed of 3 phase electric motors in ventilation systems (HVAC) for large buildings, pumps, machines, and other tool drives.

What’s Included

• The rugged “Classroom Proof” LearnLab Hands-On Training Panel
• The real Allen Bradley PowerFlex4 VFD Unit
• Industrial Panel Indication
• Ice Cube Control Relays
• Industrial Stop-Start Controls
• Selector Switches
• Three Phase Motor
• Rheostat Control (0-10v & 5-20ma)
• Wye wound Three Phase Induction Motor
• Note: This unit operates on a regular 120v 15amp wall outlet. The Panel make the three phase power!

Topic Coverage

• Basic theory and history of Variable Frequency Drives
• Internal operation and troubleshooting
• Installation and maintenance of VFD units
• Real world field I/O control theory and operation
• VFD Programming basics
• Top Ten Parameter knowledge
• And more!
