Allen Bradley PowerFlex5 VFD Training System

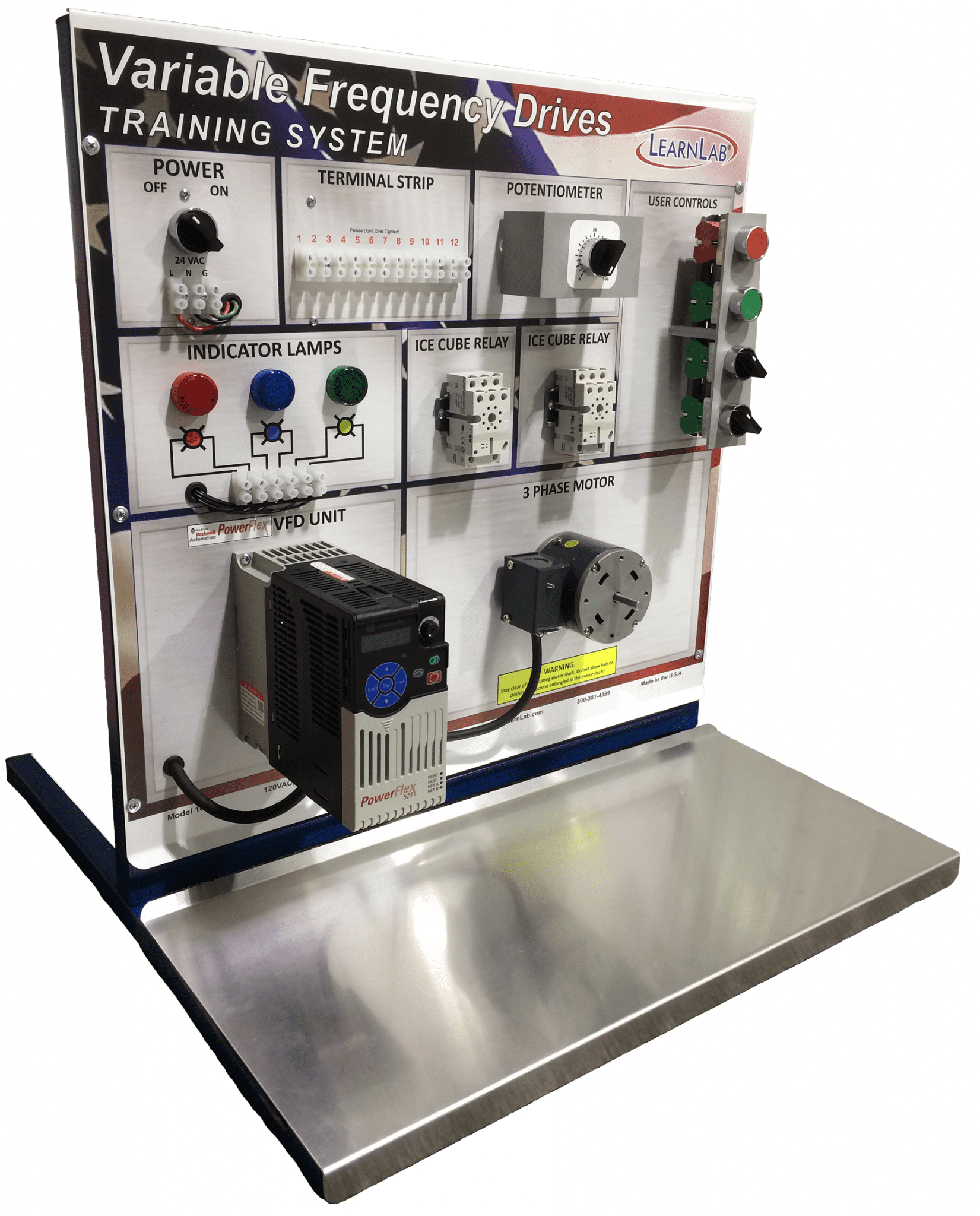

LearnLab’s popular Allen-Bradley VFD Training System features the Allen-Bradley PowerFlex 5 series of Variable Frequency Motor Drive. LearnLab’s Allen-Bradley PowerFlex 5 Series VFD Training System is designed for working on real powered electrical circuits that include a Variable Frequency Drive to control the three phase motor. Also known as adjustable-frequency drives (AFD), variable-speed drives (VSD), AC drives, microdrives or inverter drives. VFD technology is often used to control the rotational speed of 3 phase electric motors in ventilation systems (HVAC) for large buildings to control the drive motors on fans. This helps manage the volume of air moved to match the demand of the system. VFD’s are also commonly used on pumps, machines, and other tool drives.
What’s Included
- Industrial Panel Indication
- Ice Cube Control Relays
- Industrial Stop-Start Controls
- Selector Switches
- Three Phase Motor
- Rheostat Control (0-10v & 5-20ma)
- Wye wound Induction Motor
Topic Coverage
- Basic theory and history of Variable Frequency Drives
- Internal operation and troubleshooting
- Installation and maintenance of VFD units
- Real world field I/O control theory and operation
- Three Phase Inverter Duty Motor Troubleshooting
- VFD Programming basics and advanced programming
- And more!
