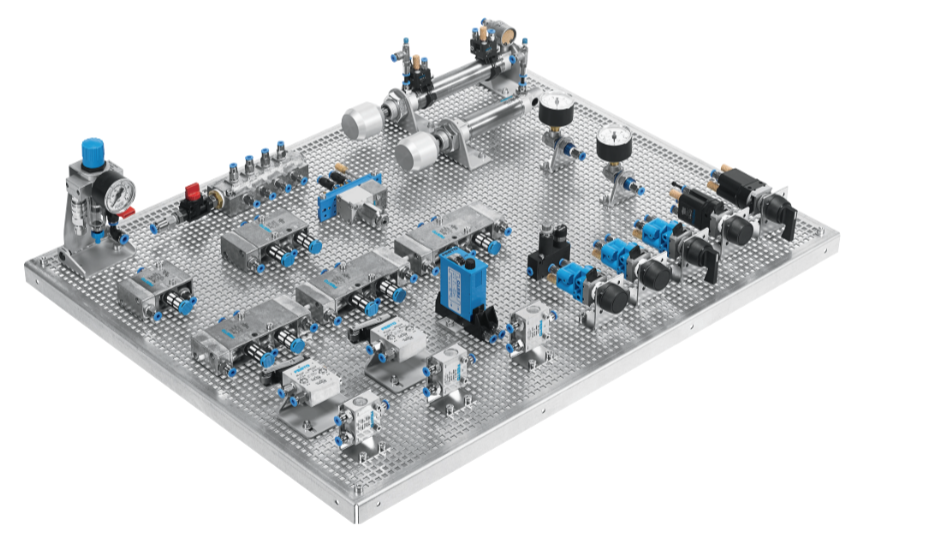

Basic Training in Pneumatics LC 101 Equipment Set
The LC 101 is conveying today what will be standard in the company tomorrow. The number of components and the design are specifically tailored to the projects contained in the workbook. This set provides maximum training return for minimum investment. LC 101 contains structure, function, and application of single-acting and double-acting cylinders. This set provides options for pressure measurement as well as pressure-dependent control systems.
Features
- Logic Operations – Explaining and implementing AND/OR/NOT operations
- Methods of actuation of directional control valves
- Time Delay Valve – The pneumatic time delay valve permits precise adjustment and can be read easily from the front
- Close Up – Switches and valves should be mounted as close to the actuator as possible to ensure optimum performance
- Economic considerations of using pneumatic components
