Basic Variable Frequency Motor Drives (VFD) Training

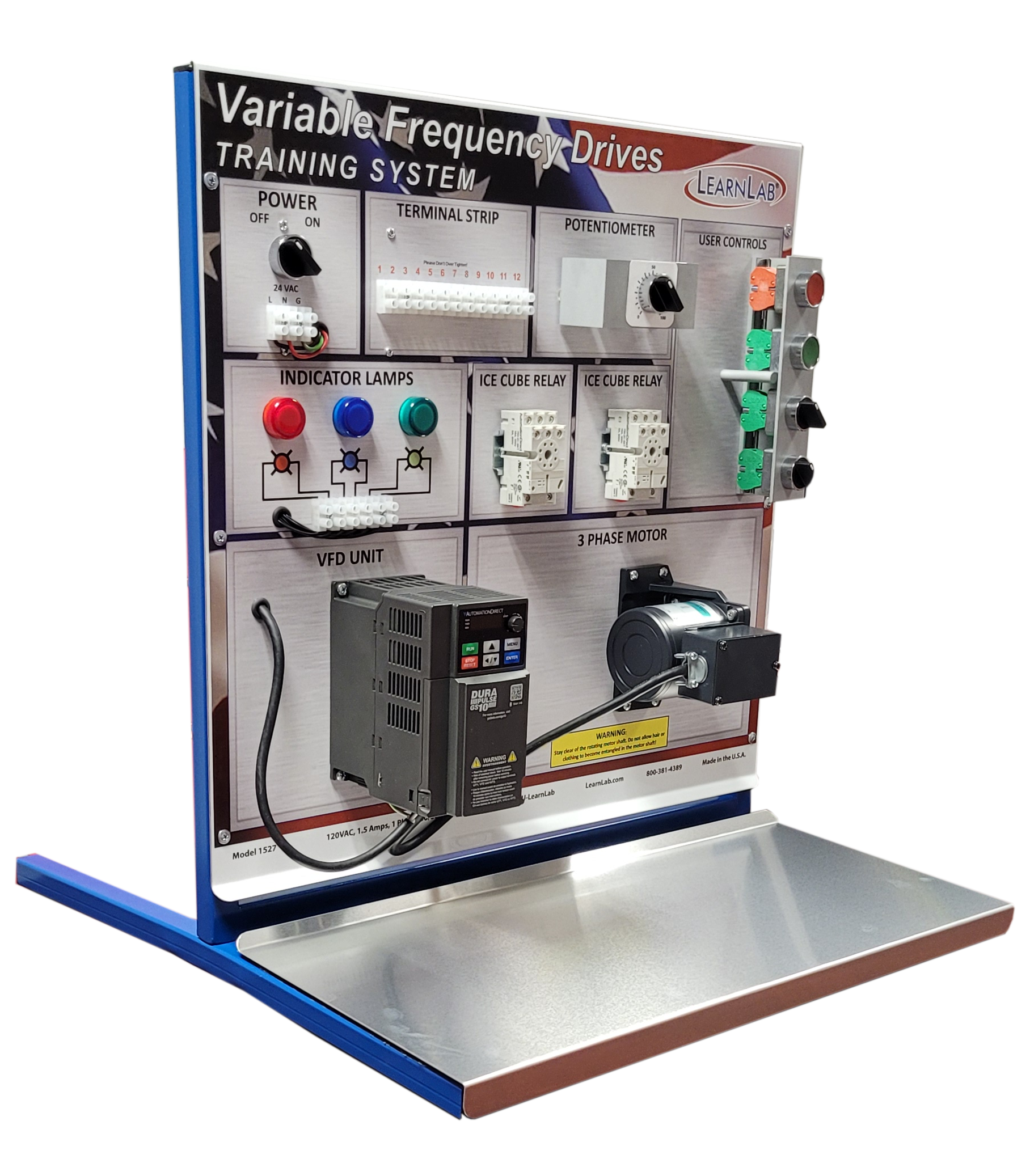

LearnLab’s VFD Training System features the GS1 series of Variable Frequency Drive. LearnLab’s VFD Training System is designed for working on real electrical circuits that include a Variable Frequency Drive to control a three-phase motor. Also known as adjustable-frequency drives (AFD), variable-speed drives (VSD), AC drives, micro drives or inverter drives, VFD technology is often used to control the rotational speed of 3 phase electric motors in ventilation systems (HVAC) for large buildings, pumps, machines, and other tool drives. This system gives you the tools to learn or teach people how to maintain, install, program, operate, and troubleshoot equipment that utilize variable frequency drives.

What’s Included

• The “Classroom Proof” rugged training Panel with real operating devices.
• Plugs into a regular 15amp 120 wall outlet. The panel generates it’s own three phase power!
• The real Variable Frequency Drive
• The Three Phase Induction Motor
• 2 Ice Cube Control Relays
• Industrial Stop-Start Switch Controls
• Selector Switches
• Rheostat Remote Control (0-10v & 5-20ma)
• Training materials… Workbook, Instructors Guide & PowerPoint. Plus online course available!

Topic Coverage

• Basic theory and history of Variable Frequency Drives
• Internal operation and troubleshooting
• Installation and maintenance of VFD units
• VFD Programming basics and advanced programming
• Top Ten Parameter knowledge
• And more!
