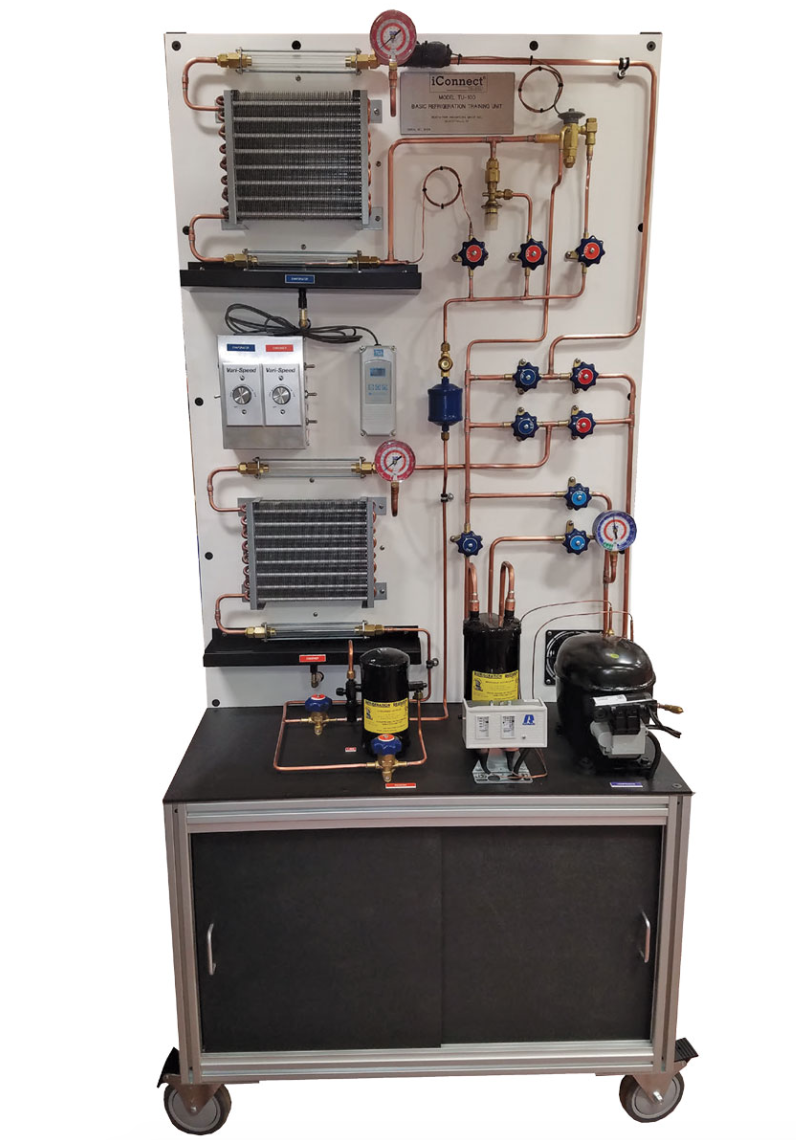

TU-100 Basic Refrigeration Trainer

The TU-100 basic refrigeration trainer demonstrates domestic refrigerator and freezers, self-contained air conditioning units and reverse cycle or heat pump systems. With this popular training unit, HVAC/R teachers will be able to give their students hands-on experience before they go out on a job site. Plus, they’re able to familiarize themselves with name brands they might see out in the field.

Features

  • Sight glass tubes at inlet and outlet of evaporator and condenser constructed of explosion-proof, tie-bolt design.
  • Color-coded valves, gauges, and hand valves to bypass various components and change from cooling to heating (heat pump operation).
  • Includes booklet which contains a Lab Manual, Instructor’s Guide, and Operation Guide.
  • A combination low pressure control and high pressure cutout and a thermostatic control with a range of –30°F to 100°F furnished.
  • Uses popular, brand name components.
  • Conditions of refrigerant and oil can be observed under various methods of operation.
  • High pressure cutout in the circuit at all times to prevent damage to the compressor.
  • Pressure gages located at each point in which pressure variation is likely to occur.
