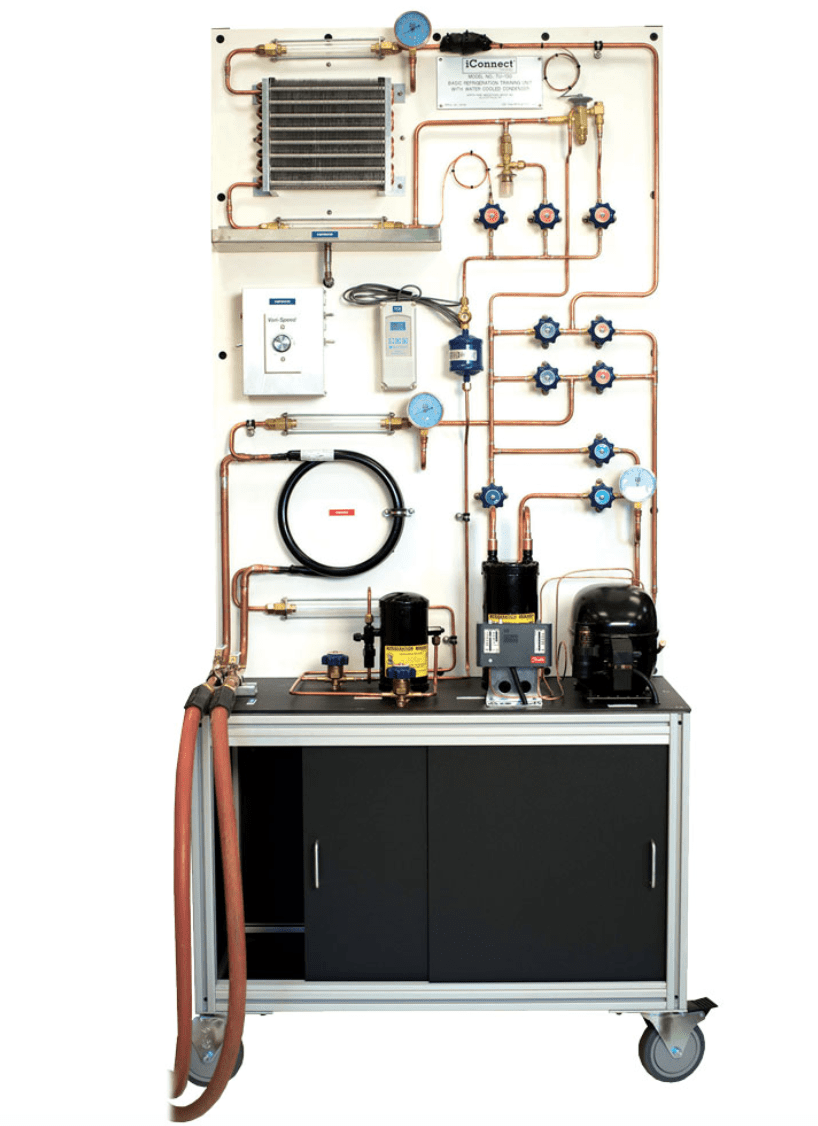

TU-130 Basic Refrigeration Training Unit with Water Cooled Condenser

The TU-130 Basic Refrigeration Training Unit with Water Cooled Condenser demonstrates a light commercial refrigeration system with dual pressure control, digital thermostat, and a co-axial, tube-in-tube heat exchanger/condenser. With this trainer, course instructors give HVAC/R students hands-on experience with refrigeration systems from the comfort of their classroom before they go out into the field.

Features

  • Sight glass tubes at inlet and outlet of evaporator and condenser constructed of explosion-proof, tie-bolt design.
  • Water cooled condenser with standard hose connections and ball valves to meter water flow.
  • Thermostatic control with a range of –30°F to 100°F.
  • Aluminum fin, copper tube evaporator with variable speed fan for load adjustment.
  • Color-coded valves, gauges, and hand valves to bypass various components.
  • A combination low and high pressure control in the circuit at all times to prevent damage to the compressor.
  • Pressure gauges located at each point in which pressure variation is likely to occur.
  • Refrigerant flow to evaporator metered either by capillary tube, automatic expansion valve (AXV), or thermostatic expansion valve (TXV).
  • Thermostatic control with a range of –30°F to 100°F.
  • Includes Operation Manual
